Double Sided High Frequency PCB Built On 10 mil RO4350B With Immersion Gold
Detail Information
| Certification | UL | Model Number | BIC-0053-V5.3 |
| Number Of Layers | 2 | Glass Epoxy | RO4350B Tg280℃, Er<3.48, Rogers Corp. |
| Final Foil External | 1.5 Oz | Final Height Of PCB | 0.3 Mm ±0.1 |
| Surface Finish | Immersion Gold | Solder Mask Color | Green |
| Colour Of Component Legend | White | TEST | 100% Electrical Test Prior Shipment |
| Minimum Order Quantity | 1 | Price | USD 2.99-8.99 per piece |
| Packaging Details | Vacuum | Delivery Time | 6-7 working days |
| Payment Terms | T/T, Paypal | Supply Ability | 45000 pieces per month |
Product Description
Brief Introduction
RO4350B High Frequency Circuit Material is glass reinforced hydrocarbon/ceramic laminates (Not PTFE) designed for performance sensitive, high volume commercial applications. Currently double sided and multilayer RO4350B PCB’s are available at Bicheng company. Double sided RO4350B PCB with thickness 10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm) and 60mil (1.524mm) are the bestsellers. We provide prototype runs, small batches and volume production services.
Advantages
1) Excellent high frequency performance due to low dielectric tolerance and loss;
2) Excellent dimensional stability.
3) Low thermal coefficient of dielectric constant;
4) Low Z-Axis expansion;
5) Low in-plane expansion coefficient;
6) Stable electrical properties verus frequency;
Applications
1) Attenuator, Automatic gate induction;
2) LNB’s for direct broadcast satellites;
3) Microstrip antenna, spread spectrum;
4) Microstrip and cellular base station antennas and power amplifiers;
5) RF identifications tags
6) Spread spectrum communications systems
7) Trunk amplifier, splitter module etc.

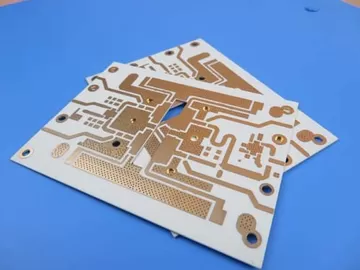

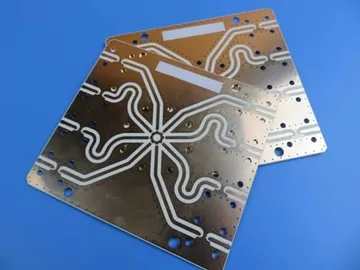

PCB Case: Double Sided PCB Built On 10 mil RO4350B With Immersion Gold
(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)
General description
This is a type of double sided PCB built on 10mil RO4350B substrate with Tg 280°C for the application of radar RF. Its finished thickness is 0.3mm and 1oz copper. White silkscreen and green solder mask covers both sides and immersion gold plated are on pads. They’re fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.
Features and benefits
RO4350B exhibits a stable dielectric constant over a broad frequency range. This makes it an ideal substrate for broadband applications;
Excellent high frequency performance due to low dielectric tolerance and loss;
Long storage time,it can be stored for more than 1 year in vacuum bag;
SMT process is resistant to reflow soldering, resistant to rework;
16000 square meter workshop;
UL, ISO14001, TS16949 certified;
Strict WIP inspection and monitoring as well as working instruction;
Quick CADCAM checking and free PCB quotation;
Competitive price;
Application
Balanced mixer, photocoupler , Sound control switch induction, multicoupler
Application
Balanced mixer, photocoupler , Sound control switch induction, multicoupler
Parameter and data sheet
| PCB SIZE | 91 x 62mm=1PCS |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ——- 35um(1 oz)+plate TOP layer |
| RO4350B 0.254mm (10 mil) | |
| copper ——- 35um(1oz) + plate BOT Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4 mil / 4 mil |
| Minimum / Maximum Holes: | 0.3 mm / 4.2 mm |
| Number of Different Holes: | 9 |
| Number of Drill Holes: | 101 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B Tg280℃, er<3.48, Rogers Corp. |
| Final foil external: | 1.5 oz |
| Final foil internal: | N/A |
| Final height of PCB: | 0.3 mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold |
| Solder Mask Apply To: | TOP, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo brand |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH), minimum size 0.3mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059″ |
| Board plating: | 0.0029″ |
| Drill tolerance: | 0.002″ |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
