Rogers AD1000 Printed Circuit Board Arlon High Frequency PCB Double Sided With Immersion Gold
Detail Information
| Place of Origin | China | Brand Name | Bicheng Technologies Limited |
| Certification | UL | Model Number | BIC-179-V9.0 |
| Glass Epoxy | AD1000 | Final Height Of PCB | 0.8mm ± 10% |
| Final Foil External | 1 Oz | Surface Finish | Immersion Gold |
| Solder Mask Color | Gloss Green | Colour Of Component Legend | White |
| Number Of Layers | 2 | Test | 100% Electrical Test Prior Shipment |
| Minimum Order Quantity | 1 | Price | USD 9.99-99.99 |
| Packaging Details | Vacuum | Delivery Time | 10 working days |
| Payment Terms | T/T, Paypal | Supply Ability | 45000 pieces per month |
Product Description

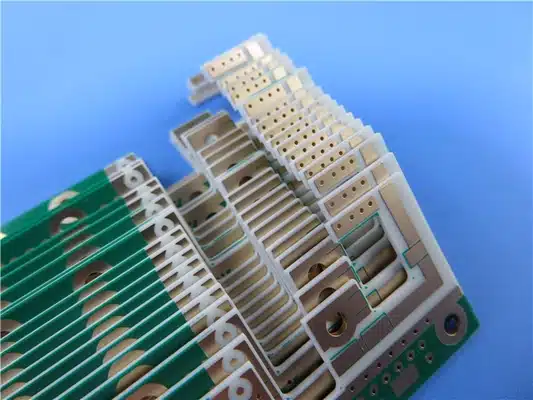

Rogers AD1000 Printed Circuit Board Arlon High Frequency PCB Double Sided With Immersion Gold
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
Brief Introduction
AD1000 is a high dielectric constant (10.2 or greater) high frequency material, a woven glass reinforced laminate. It permits circuit miniaturization, compared to traditional low loss materials and allows for greater dimensional stability and mechanical robustness than other 10 Dk laminates. AD1000 Laminates are considered a soft material which can bear vibrational stress, do not need special complicated processing or handling during the fabrication process, comparing with pure ceramic materials.
Features:
1. Woven glass reinforced PTFE/Ceramic with high Dk of 10.2
2. Thermal conductivity of 0.81 W/mK
3. High copper peel strength allows for thinner etched line widths
4. Lowest insertion loss
5. Larger panel sizes available
6. Low moisture absorption of 0.03%
7. Highly reliability ceramic component attachment and PTH reliability resulting from excellent CTE values
Typical Applications:
1. Aircraft Collision Avoidance Systems (TCAS)
2. Ground Based Radar Surveillance Systems
3. Low Noise Amplifiers (LNAs)
4. Miniaturized Circuitry & Patch Antennas
5. Power Amplifiers (PAs)
6. Radar Modules and Manifolds
7. X-Band and Below
Our PCB Capability (AD1000)
| PCB Material: | Woven Glass Reinforced PTFE/Ceramic Filled |
| Designation: | AD1000 |

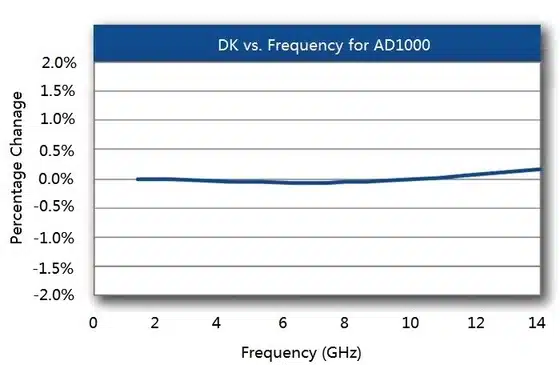

| Dielectric constant: | 10.2 |

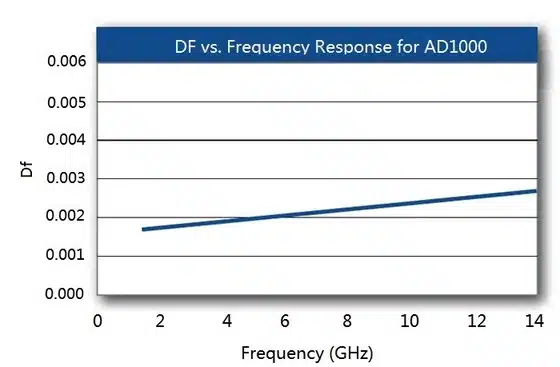

| Dissipation Factor | 0.0023 10GHz |
| Layer count: | Double Sided PCB, Multilayer PCB, Hybrid PCB |
| Copper weight: | 0.5oz (17 µm), 1oz (35µm), 2oz (70µm) |
| PCB thickness: | 6mil (0.1524mm), 10.5mil (0.2667mm), 15mil (0.381mm), 20mil (0.508mm), 25mil (0.635mm), 30mil (0.762mm), 50mil (1.27mm), 59mil (1.499mm ), 125mil ( 3.175mm ), 127mil (3.226mm ) |
| PCB size: | ≤400mm X 500mm |
| Solder mask: | Green, Black, Blue, Yellow, Red etc. |
| Surface finish: | Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP etc.. |
