4 Layer High Frequency PCB Built On RO4350B With Blind Via and Immersion Gold
Product Description
4 Layer High Frequency PCB Built On RO4350B With Blind Via and Immersion Gold

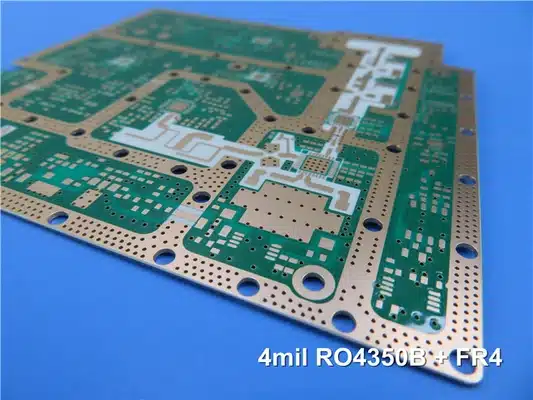

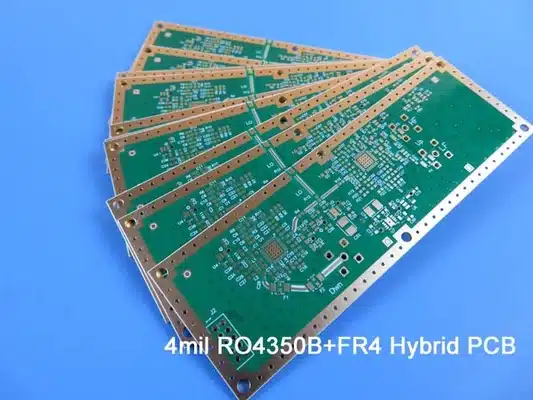

(PCB’s are custom-made products, the picture and parameters shown are just for reference)
General Description
This is a type of 4-layer HDI high frequency PCB circuit board built on RO4350B with RO4450B prepreg for the application of radar RF board. It’s a multilayer layer RF PCB board at 1.0 mm thick with immersion gold finish and solder mask and silkscreen. This board contains blind via from top layer to inner 1, top layer to inner 3. Since it’s asymmetric buildup, 1.2% warpage is allowed. It’s fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 boards are packed for shipment.
Features and benefits
The temperature coefficient of dielectric constant is among the lowest of any circuit board material, making it ideal for temperature sensitive applications.
Reducing signal loss in high frequency application meets the development needs of communication technology.
Excellent high frequency performance due to low dielectric tolerance and loss.
Gold has high solderability, no stressing of circuit boards and less contamination of PCB surface.
Engineering design prevents problems from occurring in pre-production.
100% tests inclusive of electrical test and AOI inspection.
Fast and flexible to save the time of production from prototype to standard production
Great customer service
UL recognized and RoHS Directive-compliant
Application
RF module, Power splitter, Low Noise Block, 3G antenna
| PCB SIZE | 98.02 x 101.02 mm =1up |
| BOARD TYPE | HDI PCB, High frequency PCB |
| Number of Layers | 4 layers |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ——- 35um(1 oz)+plate TOP layer |
| RO4350B 6.6mil | |
| Inner Layer 1, 18um (0.5oz) | |
| Dielectric RO4450B 4mil x2 | |
| Inner Layer 2, 18um (0.5oz) | |
| Dielectric RO4350B 20mil | |
| copper ——- 35um(1oz) + plate BOT Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5 mil / 4.9 mil |
| Minimum / Maximum Holes: | 0.3 mm / 5.5 mm |
| Number of Different Holes: | 10 |
| Number of Drill Holes: | 125 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B Tg280℃, er<3.48, Rogers Corp. |
| Final foil external: | 1.5 oz |
| Final foil internal: | 0.5 oz |
| Final height of PCB: | 1.0 mm ±10% |
| PLATING AND COATING | |
| Surface Finish | Immersion gold, 35% |
| Solder Mask Apply To: | TOP, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | CNC Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo brand |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH), minimum size 0.3mm. Blind via L1-L2, L1-L3 |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059″ |
| Board plating: | 0.0029″ |
| Drill tolerance: | 0.002″ |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
