4 Layer High Frequency PCB On 6.6 Mil RO4350B and 10 Mil RO4350B for Radar System
4 Layer High Frequency PCB On 6.6 Mil RO4350B and 10 Mil RO4350B for Radar System
MOQ:
1
Price:
USD80~90
Standard Packaging:
Vacuum
Delivery Period:
7-8 working days
Payment Method:
T/T, Paypal
Supply Capacity:
45000 pieces per month
Product Description

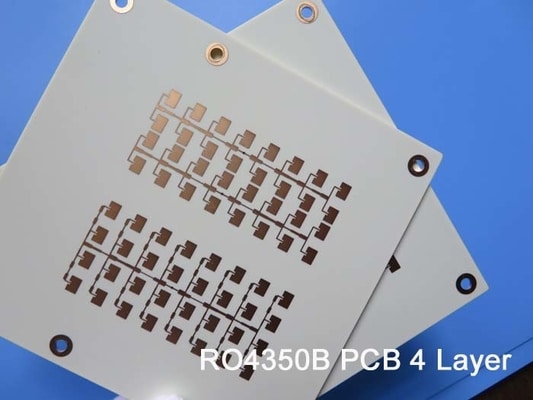

4 Layer High Frequency PCB On 6.6 Mil RO4350B and 10 Mil RO4350B for Radar System
(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)
Applications
Modular oscilloscope, Vario-coupler, Tower-mounted booster, Power amplifier
Splitter, Acoustic detection sensors, RF Switches, Trunk amplifier
Parameter and data sheet

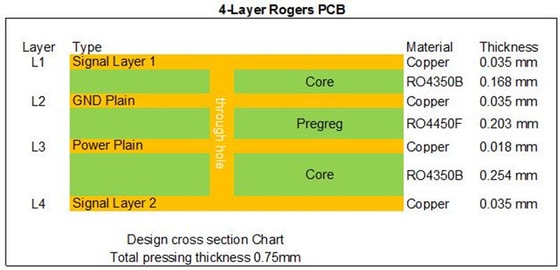

| PCB SIZE | 85 x 100mm=1PCS |
| BOARD TYPE | Multilayer PCB |
| Number of Layers | 4 Layers |
| Surface Mount Components | YES |
| Through Hole Components | No |
| LAYER STACKUP | Copper ——- 35um(1 oz)+plate TOP layer |
| Dielectric RO4350B 0.168mm (6.6 mil) | |
| Copper ——- 35um(1oz) | |
| Dielectric RO4350F 0.203mm (8 mil) | |
| Copper —— 35um (1oz) | |
| Dielectric RO4450B 0.254mm ( 10 mil) | |
| Copper ——35um (1oz) + plate Bottom Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4 mil / 5 mil |
| Minimum / Maximum Holes: | 0.25 mm / 2.0 mm |
| Number of Different Holes: | 5 |
| Number of Drill Holes: | 175 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 3 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B Tg280℃, er<3.48, Rogers Corp. |
| Final foil external: | 1.5 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 0.82 mm ±0.1mm |
| PLATING AND COATING | |
| Surface Finish | Immersion gold |
| Solder Mask Apply To: | N/A |
| Solder Mask Color: | N/A |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | N/A |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 0.25mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059″ |
| Board plating: | 0.0029″ |
| Drill tolerance: | 0.002″ |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
